F02 - Swingarm - FC50MY07_MY08_MY09
Microfichas / FANTIC / Peças de Montagem / FC50MY07_MY08_MY09
Alternar rapidamente entre desenhos deste veículo (13):
F01 - Quadro e Chassis - FC50MY07_MY08_MY09
F02 - Swingarm - FC50MY07_MY08_MY09
F03 - Front fork COMPETIZIONE - FC50MY07_MY08_MY09
F04 - Front Fork CASA/MOTARD - FC50MY07_MY08_MY09
F05 - Roda Dianteira - FC50MY07_MY08_MY09
F06 - Roda Traseira - FC50MY07_MY08_MY09
F08 - Depósito de Combustível e Banco - FC50MY07_MY08_MY09
F09 - Guiador e Comandos - FC50MY07_MY08_MY09
F12 - Dell'Orto VHST 26 BS - FC50MY07_MY08_MY09
F13 - Dell'Orto PHBN 16 NS - FC50MY07_MY08_MY09
F14 - Adhésifs 2007 - FC50MY07_MY08_MY09
F14 - Adhésifs 2008 - FC50MY07_MY08_MY09
F14 - Adhésifs 2009 - FC50MY07_MY08_MY09
Peças do Desenho (36 itens)
| Nº | Ref. OEM | Foto | Descrição da Peça | Qtd | Disponibilidade | Preço | Comprar |
|---|---|---|---|---|---|---|---|
| 2 | 00906005 |
|
[00906005] SWINGING FORK ALUM. - FANTIC Catálogo | 1 | Sob Consulta | 469.60 € |
|
| 2 | 00932005 |
|
[00932005] SWINGING FORK ALUM.2007-09 - FANTIC Catálogo | 1 | Sob Consulta | 529.40 € |
|
| 3 | 00122005 |
|
[00122005] INTERNAL SWINGARM SPACER - FANTIC Catálogo | 1 | Sob Consulta | 7.40 € |
|
| 4 | 00006005 |
|
[00006005] BEARING - FANTIC | 4 | Sob Consulta | 9999999.00 € |
|
| 5 | 00083005 |
|
[00083005] O-RING - FANTIC Catálogo | 2 | Sob Consulta | 0.20 € |
|
| 6 | 00003005 |
|
[00003005] BUSHING - FANTIC | 2 | Sob Consulta | 10.40 € |
|
| 7 | 00123005 |
|
[00123005] CHAIN GUIDE BLACK - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|

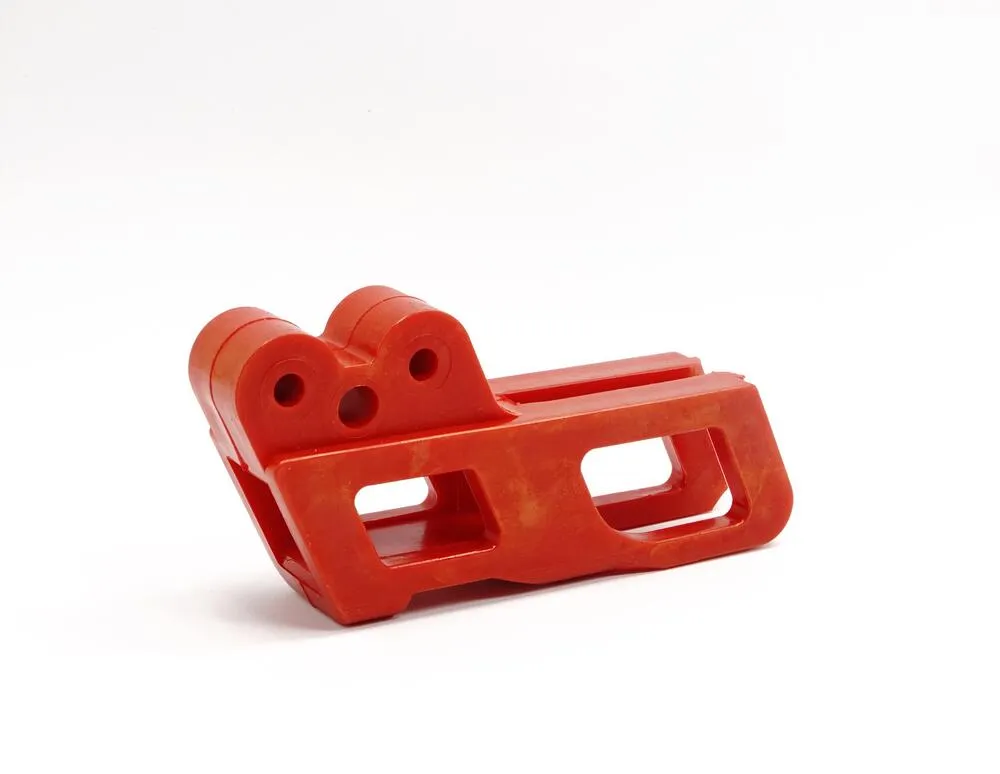

| 7 | 01857005 |
|
[01857005] CHAIN GUIDE RED - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 8 | 00049005 |
|
[00049005] SCREW-SOCKET CONVEX HEAD 6X40 - FANTIC Catálogo | 2 | Sob Consulta | 0.40 € |
|
| 9 | 00064005 |
|
[00064005] NUT-LOCK 6 LOW - FANTIC Catálogo | 2 | Sob Consulta | 0.20 € |
|
| 10 | 01879005 |
|
[01879005] CABLE GUIDE - FANTIC Catálogo | 2 | Sob Consulta | 2.80 € |
|
| 11 | 00072005 | [00072005] SCREW-TAPPING 4,8X16 - FANTIC | 2 | Sob Consulta | 0.20 € |
|
|
| 12 | 00916005 |
|
[00916005] CHAIN SLIDE BLACK FOR ALUM.FORK - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|

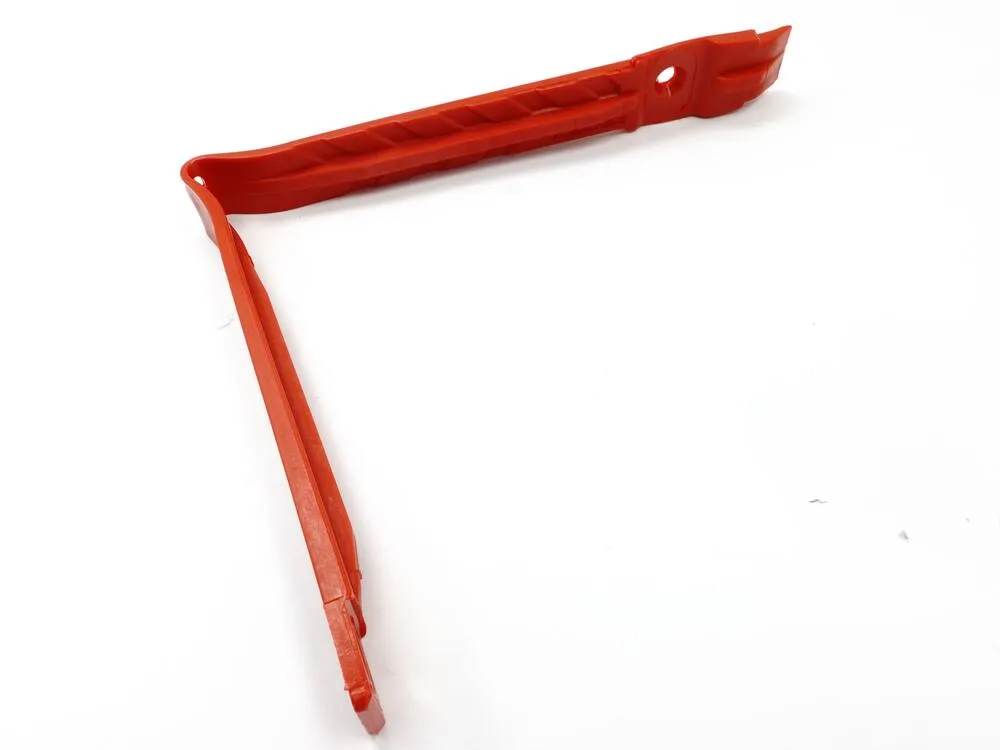

| 12 | 01856005 |
|
[01856005] CHAIN SLIDER RED - FANTIC Catálogo | 1 | Sob Consulta | 14.80 € |
|
| 13 | 00986005 |
|
[00986005] SCREW FLATHEAD 8X10 - FANTIC Catálogo | 2 | Sob Consulta | 0.40 € |
|
| 14 | 01253005 |
|
[01253005] SCREW FLATHEAD 6X8 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 15 | 00055005 |
|
[00055005] SCREW-HEXAGONAL HEAD 8X50 - FANTIC Catálogo | 2 | Sob Consulta | 0.60 € |
|

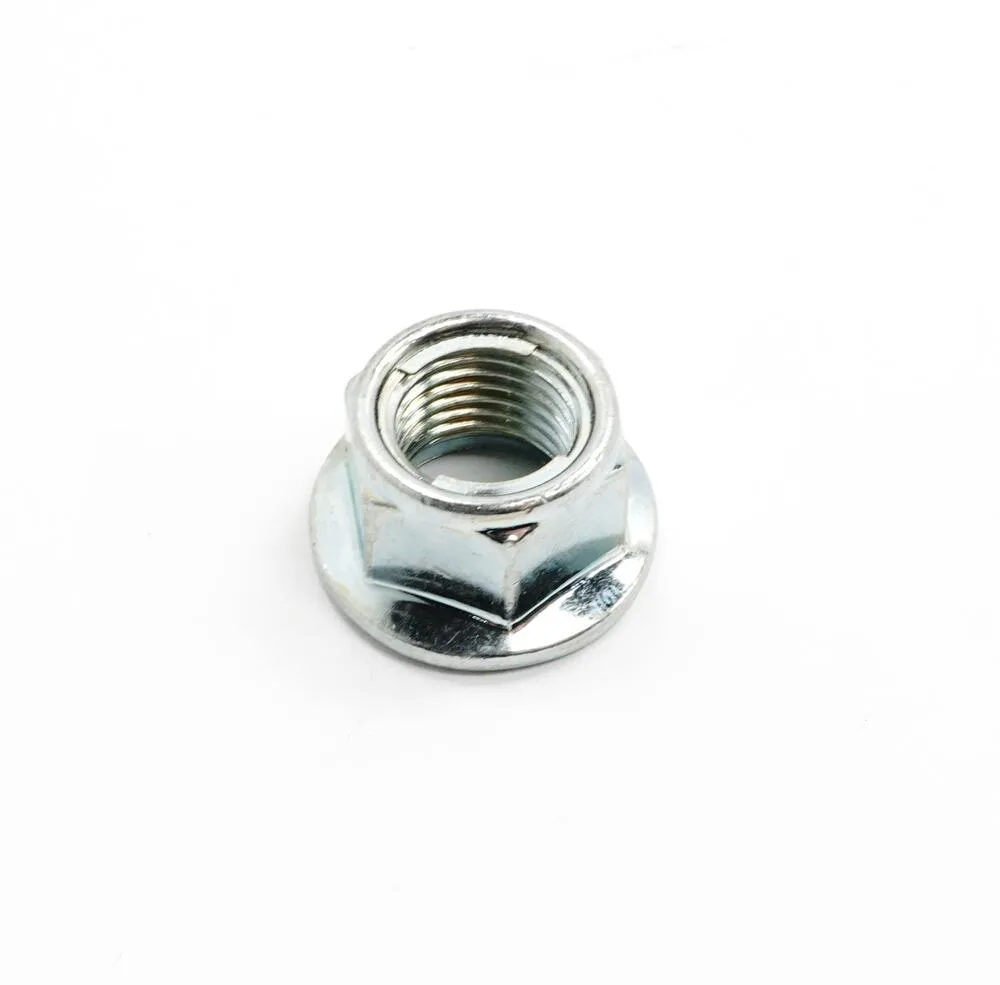

| 16 | 00063005 |
|
[00063005] NUT-STOP 8 FLANGED - FANTIC Catálogo | 2 | Sob Consulta | 0.20 € |
|

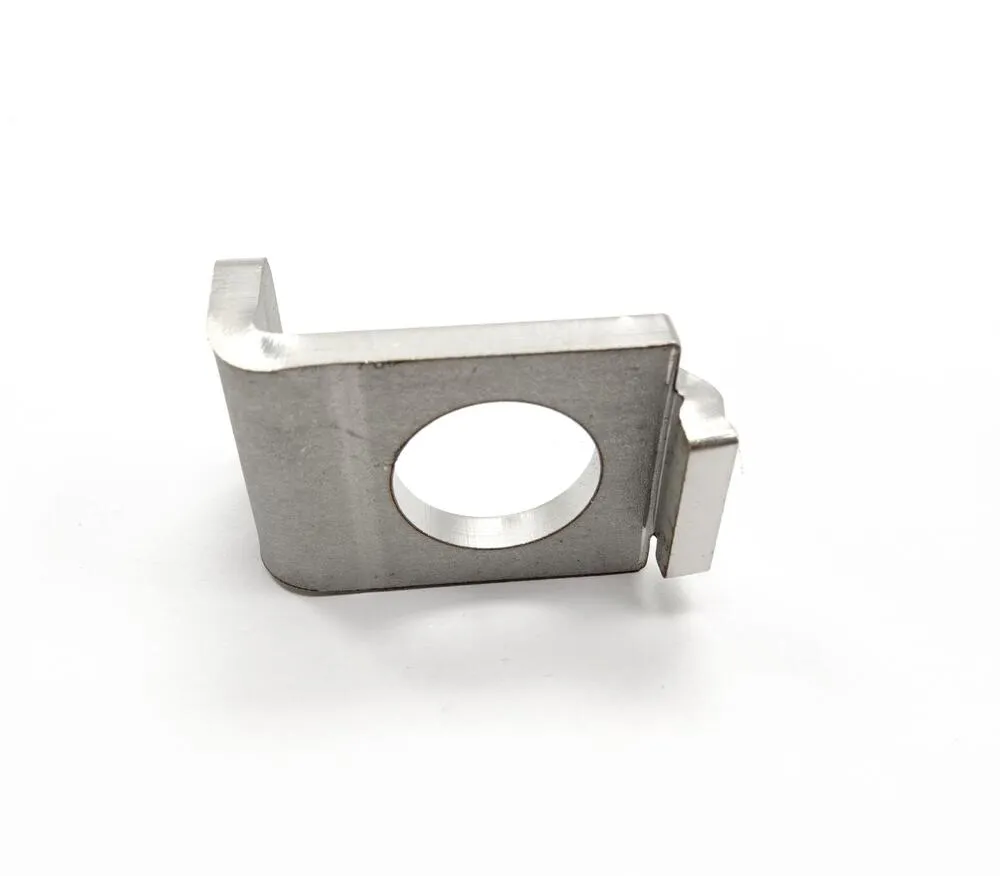

| 17 | 00233005 |
|
[00233005] CHAIN TENSIONER - FANTIC Catálogo | 2 | Sob Consulta | 7.60 € |
|
| 18 | 00002005 |
|
[00002005] SWINGARM PIN - FANTIC | 1 | Sob Consulta | 9999999.00 € |
|
| 19 | 00004005 |
|
[00004005] SWINGARM PIN NUT - FANTIC | 1 | Sob Consulta | 2.00 € |
|
| 20 | 00135005 |
|
[00135005] SHOCK ADSORBER 50 CASA/MOTARD-S - FANTIC Catálogo | 1 | Sob Consulta | 378.40 € |
|
| 20 | 00843005 |
|
[00843005] SHOCK ADSORBER 50 COMP.-M - FANTIC Catálogo | 1 | Sob Consulta | 539.60 € |
|
| 20 | 01307005 |
|
[01307005] SHOCK ADSORBER-ET - FANTIC Catálogo | 1 | Sob Consulta | 390.00 € |
|
| 21 | 00032005 | [00032005] SCREW M10x40 - FANTIC | 1 | Sob Consulta | 1.00 € |
|
|
| 22 | 00061005 |
|
[00061005] SELF-BLOCKING NUT M10 LOW - FANTIC Catálogo | 1 | Sob Consulta | 3.00 € |
|
| 23 | 00054005 | [00054005] SCREW M10x45 - FANTIC | 1 | Sob Consulta | 2.00 € |
|
|
| 24 | 00061005 |
|
[00061005] SELF-BLOCKING NUT M10 LOW - FANTIC Catálogo | 1 | Sob Consulta | 3.00 € |
|
| 25 | 01387005 |
|
[01387005] LINKAGE PIN (ON FRAME) - FANTIC Catálogo | 2 | Sob Consulta | 9999999.00 € |
|
| 26 | 00094005 |
|
[00094005] BRAKE PADS-REAR BRAKING RACING - FANTIC Catálogo | 1 | Sob Consulta | 26.80 € |
|
| 27 | 01382005 |
|
[01382005] CONNECTING ROD PROGRESSIVE SYSTEM - FANTIC Catálogo | 1 | Sob Consulta | 85.80 € |
|
| 28 | 01381005 |
|
[01381005] TRIANGLE FOR PROGRESSIVE SYSTEM - FANTIC Catálogo | 1 | Sob Consulta | 105.40 € |
|

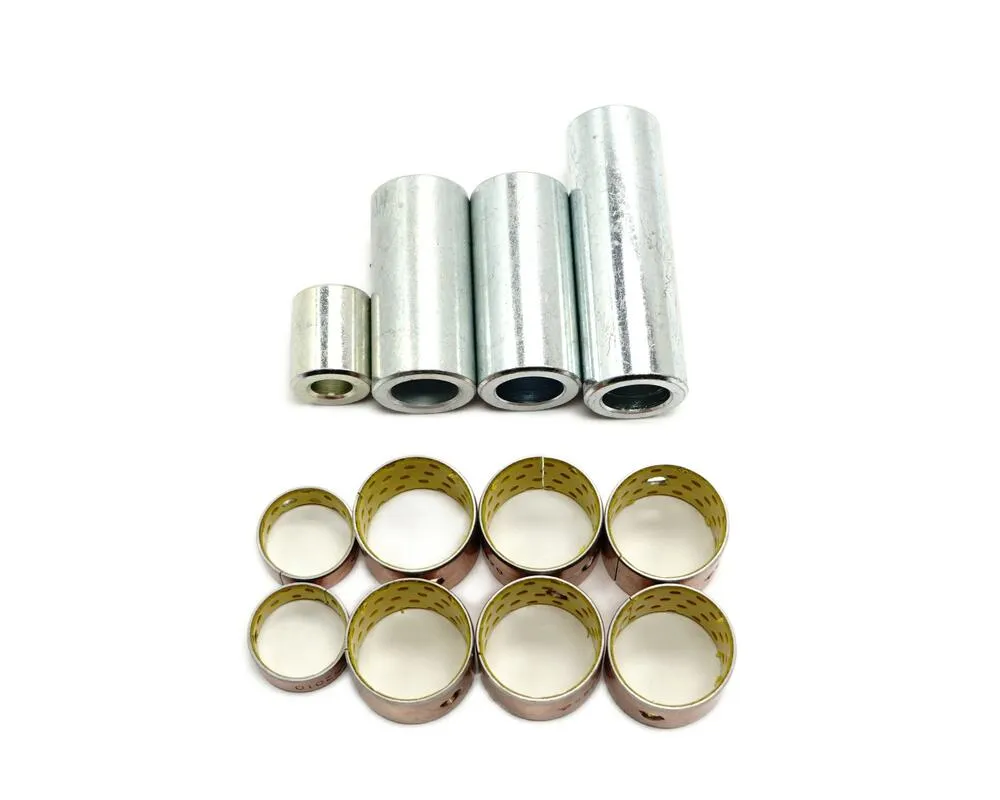

| 29 | 02057005 |
|
[02057005] PROGRESSIVE SYSTEM REPAIR KIT - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 30 | 00139005 | [00139005] CYLINDER COMPETIZIONE D40 - FANTIC | 3 | Sob Consulta | 237.40 € |
|
|
| 31 | 00048005 | [00048005] SCREW-HEXAGONAL HEAD 6X25 - FANTIC | 1 | Sob Consulta | 0.20 € |
|
|
| 32 | 00066005 | [00066005] NUT 6 - FANTIC | 1 | Sob Consulta | 0.20 € |
|
