F27 - Admissão e Alimentação - N-TZ170-N-TZ200MY2014-2016
Microfichas / FANTIC / Peças de Montagem / N-TZ170-N-TZ200MY2014-2016
Alternar rapidamente entre desenhos deste veículo (12):
F00 - N-TZ170/TZ200 Enduro/Motard CASA - N-TZ170-N-TZ200MY2014-2016
F01 - Quadro e Chassis - N-TZ170-N-TZ200MY2014-2016
F02 - Braço Oscilante e Suspensão Traseira - N-TZ170-N-TZ200MY2014-2016
F03 - Baínhas e Suspensão Dianteira - N-TZ170-N-TZ200MY2014-2016
F04 - Baínhas e Suspensão Dianteira - N-TZ170-N-TZ200MY2014-2016
F05 - Roda Dianteira - N-TZ170-N-TZ200MY2014-2016
F06 - Roda Traseira - N-TZ170-N-TZ200MY2014-2016
F08 - Depósito de Combustível e Banco - N-TZ170-N-TZ200MY2014-2016
F09 - Comodos - N-TZ170-N-TZ200MY2014-2016
F09 - Comods - N-TZ170-N-TZ200MY2014-2016
F27 - Admissão e Alimentação - N-TZ170-N-TZ200MY2014-2016
F28 - Adhésifs - N-TZ170-N-TZ200MY2014-2016
Peças do Desenho (55 itens)
| Nº | Ref. OEM | Foto | Descrição da Peça | Qtd | Disponibilidade | Preço | Comprar |
|---|---|---|---|---|---|---|---|
| 2 | 02891005 |
|
[02891005] VACUUM PISTON COMP. - FANTIC Catálogo | 1 | Sob Consulta | 179.80 € |
|
| 3 | 04006005 |
|
[04006005] JET NEEDLE COMP. - FANTIC Catálogo | 1 | Sob Consulta | 31.80 € |
|
| 4 | 1C0-E4936-00-C |
|
[1C0-E4936-00-C] SPRING SHEET - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 5 | 1C0-E4933-00-C |
|
[1C0-E4933-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 6 | 1C0-E4958-00-C |
|
[1C0-E4958-00-C] TOP - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 7 | 1C0-E4327-00-C |
|
[1C0-E4327-00-C] SCREW - FANTIC Catálogo | 4 | Sob Consulta | 9999999.00 € |
|
| 8 | 1C0-E4947-00-C |
|
[1C0-E4947-00-C] NEEDLE JET - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 9 | 39S-E496A-00-C |
|
[39S-E496A-00-C] NEEDLE JET HOLDER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 10 | 1C0-E4943-00-C |
|
[1C0-E4943-00-C] MAIN JET - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 11 | 39S-E4948-00-C |
|
[39S-E4948-00-C] SLOW JET - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 12 | 1C0-E4923-00-C |
|
[1C0-E4923-00-C] ADEJUST SCREW - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 13 | 1C0-E4160-00-C |
|
[1C0-E4160-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 14 | 39S-E4952-00-C |
|
[39S-E4952-00-C] WASHER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 15 | 1C0-E4562-00-C |
|
[1C0-E4562-00-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 16 | 02892005 |
|
[02892005] FLOAT VALVE COMP. - FANTIC Catálogo | 1 | Sob Consulta | 22.60 € |
|
| 17 | 02893005 |
|
[02893005] CLIP - FANTIC Catálogo | 1 | Sob Consulta | 6.40 € |
|

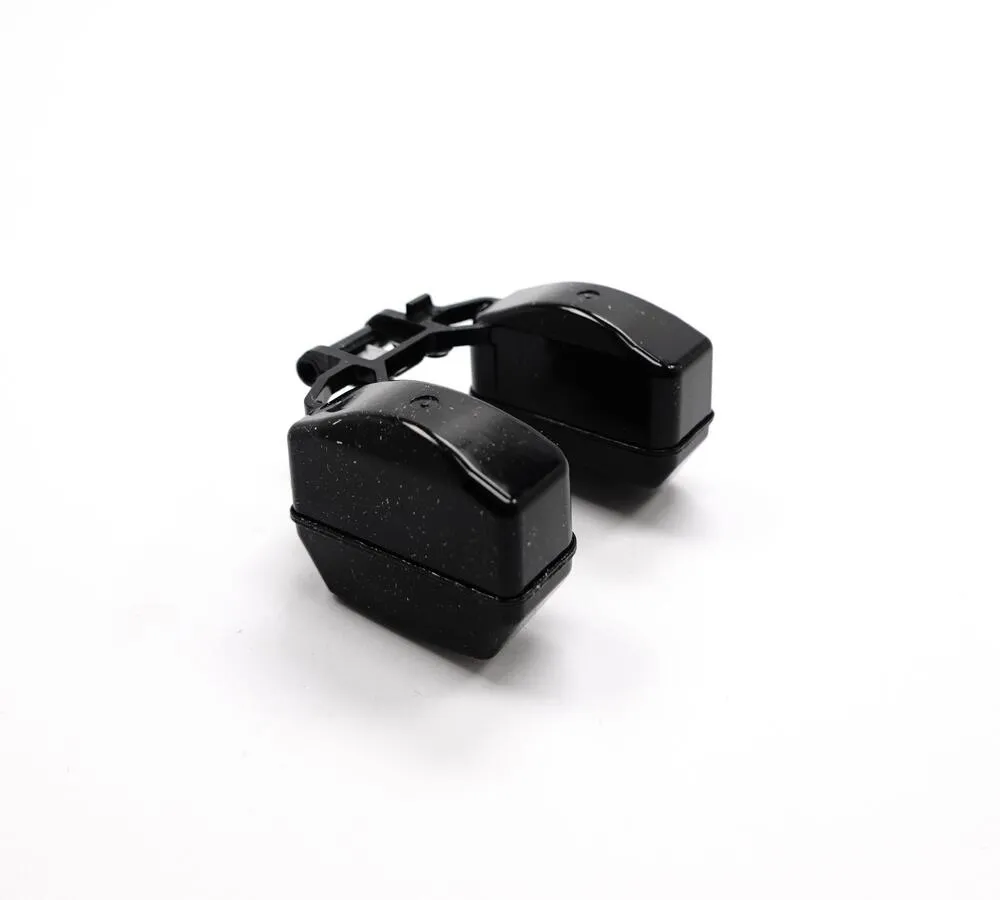

| 18 | 02894005 |
|
[02894005] FLOAT COMP - FANTIC Catálogo | 1 | Sob Consulta | 76.80 € |
|
| 19 | 1C0-E4386-00-C |
|
[1C0-E4386-00-C] ARM PIN - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 20 | 39S-E4181-00-C |
|
[39S-E4181-00-C] FLOAT CHAMBER BODY COMP. - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 21 | 39S-E493A-00-C |
|
[39S-E493A-00-C] PLUNGER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 22 | 1C0-E491A-00-C |
|
[1C0-E491A-00-C] COLLAR - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 23 | 1C0-E4968-00-C |
|
[1C0-E4968-00-C] PLASTIC CAP - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 24 | 1C0-E4534-00-C |
|
[1C0-E4534-00-C] COLLAR - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 25 | 1C0-E4397-00-C |
|
[1C0-E4397-00-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 26 | 1C0-E4938-00-C |
|
[1C0-E4938-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 27 | 1C0-E4397-10-C |
|
[1C0-E4397-10-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 28 | 1C0-E4383-00-C |
|
[1C0-E4383-00-C] DRAIN SCREW - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 29 | 1C0-E4984-00-C |
|
[1C0-E4984-00-C] FLOAT CHAMBER GASKET - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 30 | 1C0-E4991-00-C |
|
[1C0-E4991-00-C] SCREW - FANTIC Catálogo | 4 | Sob Consulta | 9999999.00 € |
|
| 31 | 1C0-E490A-00-C |
|
[1C0-E490A-00-C] DIAPHRAGM COMP. - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 32 | 1C0-E4935-00-C |
|
[1C0-E4935-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 33 | 39S-E4922-00-C |
|
[39S-E4922-00-C] STOP SCREW - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 34 | 1C0-E4918-00-C |
|
[1C0-E4918-00-C] WASHER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 35 | 1C0-E4934-00-C |
|
[1C0-E4934-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|

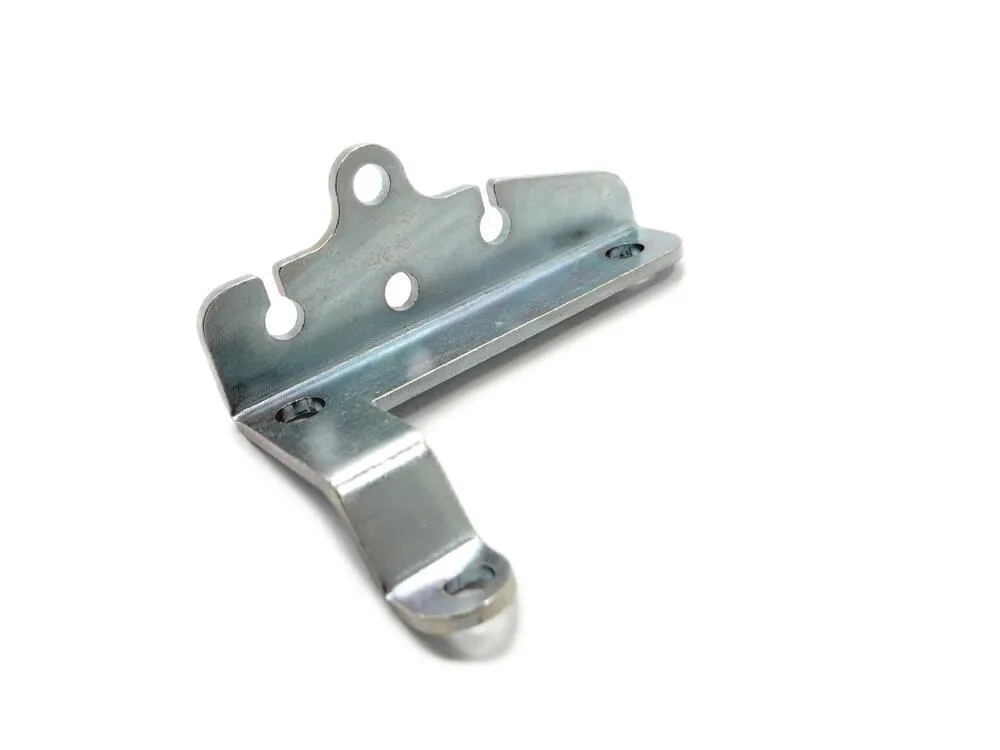

| 36 | 01545005 |
|
[01545005] SUPPORT BRACKET GAS CABLE 125-LC - FANTIC Catálogo | 1 | Sob Consulta | 9.60 € |
|
| 37 | 1C0-E4245-00-C |
|
[1C0-E4245-00-C] SCREW - FANTIC Catálogo | 2 | Sob Consulta | 9999999.00 € |
|
| 42 | 39S-E4907-00-C |
|
[39S-E4907-00-C] BY STARTER BODY COMP. - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 43 | 1C0-E4397-20-C |
|
[1C0-E4397-20-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 44 | 39S-E4327-00-C |
|
[39S-E4327-00-C] SCREW - FANTIC Catálogo | 2 | Sob Consulta | 9999999.00 € |
|
| 45 | 1C0-E4196-00-C |
|
[1C0-E4196-00-C] PLASTIC PIPE - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 46 | 04245005 |
|
[04245005] BREATHER PIPE - FANTIC Catálogo | 1 | Sob Consulta | 7.20 € |
|
| 47 | 1C0-E4937-00-C |
|
[1C0-E4937-00-C] TUBE CLIP - FANTIC Catálogo | 2 | Sob Consulta | 9999999.00 € |
|
| 50 | 1C0-E4293-00-C |
|
[1C0-E4293-00-C] COVER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 51 | 1C0-E4327-40-C |
|
[1C0-E4327-40-C] SCREW - FANTIC Catálogo | 2 | Sob Consulta | 9999999.00 € |
|
| 52 | 1C0-E4397-30-C |
|
[1C0-E4397-30-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 54 | 1C0-E4937-10-C |
|
[1C0-E4937-10-C] TUBE CLIP - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 55 | 39S-E4371-00-C |
|
[39S-E4371-00-C] STARTER VALVE COMP. - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 56 | 39S-E4397-00-C |
|
[39S-E4397-00-C] O-RING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 57 | 39S-E4935-00-C |
|
[39S-E4935-00-C] COIL SPRING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 58 | 39S-E3738-00-C |
|
[39S-E3738-00-C] HOLDER CABLE - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 59 | 39S-E4169-00-C |
|
[39S-E4169-00-C] CAP CABLE SEALING - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 60 | 39S-E4155-00-C |
|
[39S-E4155-00-C] GUIDE CABLE - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 61 | 39S-H3790-00-C |
|
[39S-H3790-00-C] HEATER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 62 | 39S-H2103-00-C |
|
[39S-H2103-00-C] TERMINAL - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 63 | 39S-E4211-00-C |
|
[39S-E4211-00-C] ADJUST HOLDER - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
