F01 - Quadro e Chassis - FC125MY08_MY09
Microfichas / FANTIC / Peças de Montagem / FC125MY08_MY09
Alternar rapidamente entre desenhos deste veículo (10):
F01 - Quadro e Chassis - FC125MY08_MY09
F02 - Swingarm - FC125MY08_MY09
F03 - Baínhas e Suspensão Dianteira - FC125MY08_MY09
F04 - Baínhas e Suspensão Dianteira - FC125MY08_MY09
F05 - Roda Dianteira - FC125MY08_MY09
F06 - Roda Traseira - FC125MY08_MY09
F08 - Depósito de Combustível e Banco - FC125MY08_MY09
F09 - Guiador e Comandos - FC125MY08_MY09
F27 - autocollants 2009 - FC125MY08_MY09
F28 - autocollants 2008 - FC125MY08_MY09
Peças do Desenho (60 itens)
| Nº | Ref. OEM | Foto | Descrição da Peça | Qtd | Disponibilidade | Preço | Comprar |
|---|---|---|---|---|---|---|---|
| 1 | 01047001 |
|
[01047001] FRAME 50 TX180 BLACK - FANTIC Catálogo | 1 | Sob Consulta | 910.00 € |
|
| 1 | 01341001 |
|
[01341001] FRAME 125 TZ170 BLACK - FANTIC Catálogo | 1 | Sob Consulta | 130.00 € |
|
| 2 | 01338005 |
|
[01338005] FRAME REAR ALUMINIUM 125 4T LC - FANTIC Catálogo | 1 | Sob Consulta | 338.00 € |
|
| 3 | 00278005 |
|

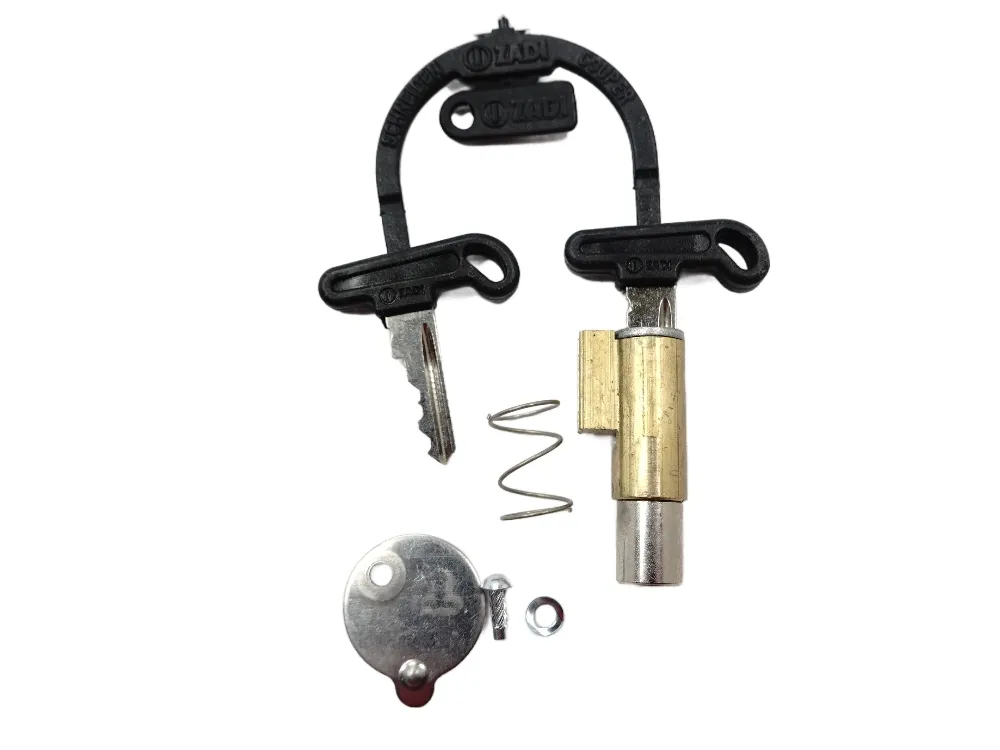

[00278005] LOCK - FANTIC | 1 | Sob Consulta | 30.60 € |
|
| 4 | 00026005 | [00026005] BLACK CHAIN TURNING WHEEL - FANTIC | 1 | Sob Consulta | 10.60 € |
|
|
| 4 | 01855005 |
|

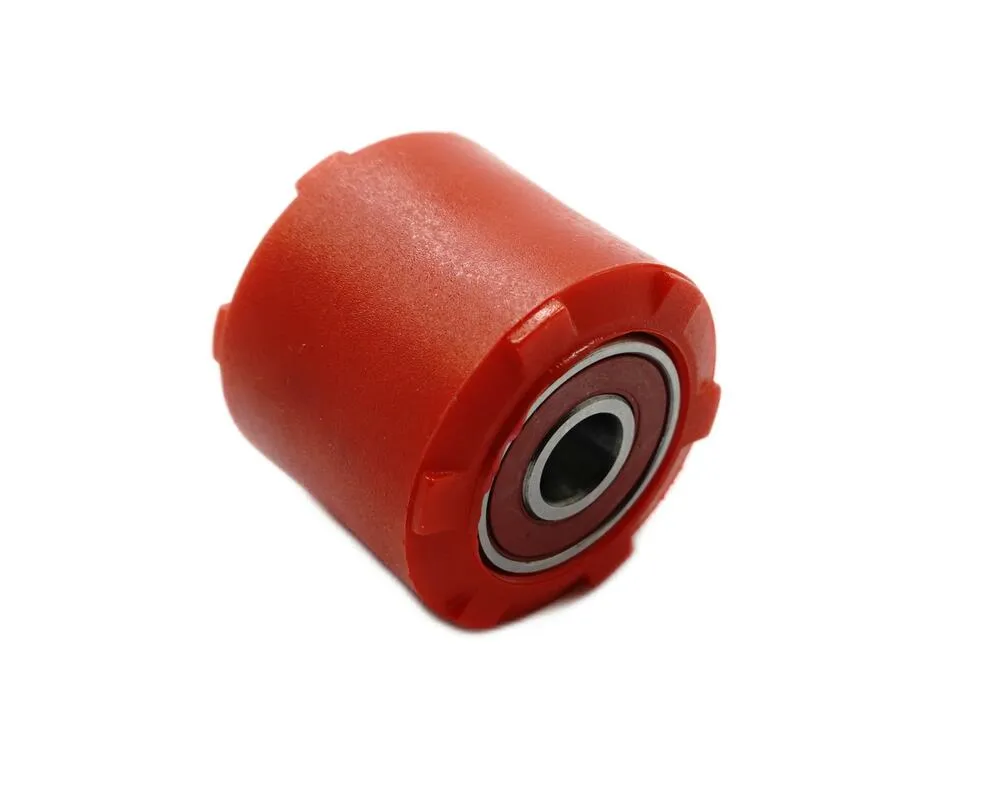

[01855005] ROLLER RED - FANTIC Catálogo | 1 | Sob Consulta | 11.00 € |
|
| 5 | 00039005 |
|
[00039005] SCREW-SOCKET CONVEX HEAD 8X45 - FANTIC Catálogo | 1 | Sob Consulta | 0.40 € |
|
| 6 | 00060005 |
|
[00060005] WASHER M8 UNI 6592 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 7 | 00583005 |
|
[00583005] NUT-LOCK 8 LOW - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 8 | 01486005 |
|
[01486005] SCREW-HEXAGONAL HEAD 10X120 - FANTIC Catálogo | 1 | Sob Consulta | 1.80 € |
|
| 9 | 00060005 |
|
[00060005] WASHER M8 UNI 6592 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 10 | 00280005 |
|
[00280005] NUT M10 SELF-BLOCKING - FANTIC Catálogo | 1 | Sob Consulta | 0.40 € |
|
| 11 | 01319001 |
|
[01319001] SUPPORT RADIATOR RIGHT BLACK - FANTIC Catálogo | 1 | Sob Consulta | 10.80 € |
|
| 12 | 00326005 |
|
[00326005] WATER RADIATOR BREATHER TUBE CM65 - FANTIC Catálogo | 1 | Sob Consulta | 2.40 € |
|
| 13 | 00323005 |
|
[00323005] SPLIT PIN FOOTBOARDS - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 14 | 00070005 |
|
[00070005] CLIP M6 - FANTIC Catálogo | 1 | Sob Consulta | 1.20 € |
|
| 15 | 01842005 |
|
[01842005] SLEEVE-RADIATOR RIGHT 125 LC - FANTIC Catálogo | 1 | Sob Consulta | 6.60 € |
|
| 16 | 00834005 |
|
[00834005] GROMMET FOR RADIATOR SUPPORTS SPACER - FANTIC | 1 | Em Stock (4 un) | 1.20 € |
|
| 17 | 00109005 |
|
[00109005] SLEEVE-RADIATOR RIGHT SINGLE - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 18 | 00111005 |
|
[00111005] CLAMP RADIATOR CLIC R240 - FANTIC Catálogo | 1 | Sob Consulta | 1.00 € |
|
| 19 | 00767005 |
|
[00767005] RADIATOR SUPPORTS SPACER 50cc - FANTIC Catálogo | 1 | Sob Consulta | 1.80 € |
|
| 20 | 01560001 |
|
[01560001] PLATE CONN.MOTOR 125 LC RIGHT BLACK - FANTIC Catálogo | 1 | Sob Consulta | 11.40 € |
|
| 21 | 01596008 |
|
[01596008] PIPE-BLIND RADIATOR+MANIFOLD 125 LC - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 22 | 01545005 |
|
[01545005] SUPPORT BRACKET GAS CABLE 125-LC - FANTIC Catálogo | 1 | Sob Consulta | 9.60 € |
|
| 22 | 01595008 |
|
[01595008] PIPE-DRAINING RADIATOR 125 LC - FANTIC Catálogo | 1 | Sob Consulta | 3.00 € |
|
| 23 | 01186005 |
|
[01186005] RIGHT RADIATOR - FANTIC Catálogo | 1 | Sob Consulta | 164.00 € |
|
| 23 | 01351005 |
|
[01351005] RADIATOR COVER - FANTIC Catálogo | 1 | Sob Consulta | 6.00 € |
|
| 24 | 00127001 |
|
[00127001] STAND-SIDE ENDURO 2005/2009 BLACK - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 24 | 00305001 |
|
[00305001] STAND-SIDE MOTARD 2005/2009 BLACK - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 25 | 00125005 |
|
[00125005] SPRING STAND INT.2005/2009 - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 26 | 00126005 |
|
[00126005] SPRING STAND EXT.2005/2009 - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 27 | 00128001 |
|
[00128001] PLATE SUPPORT SIDE-STAND BLACK - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 28 | 00062005 | [00062005] SCREW-SOCKET CONVEX HEAD 10X30 - FANTIC | 1 | Sob Consulta | 0.60 € |
|
|
| 29 | 00280005 |
|
[00280005] NUT M10 SELF-BLOCKING - FANTIC Catálogo | 1 | Sob Consulta | 0.40 € |
|
| 30 | 01602005 |
|
[01602005] SCREW-HEXAGONAL HEAD 8X25 - FANTIC Catálogo | 1 | Sob Consulta | 9999999.00 € |
|
| 31 | 01300005 |
|
[01300005] LEFT RADIATOR PIPE - FANTIC Catálogo | 1 | Sob Consulta | 3.20 € |
|
| 32 | 00008005 |
|

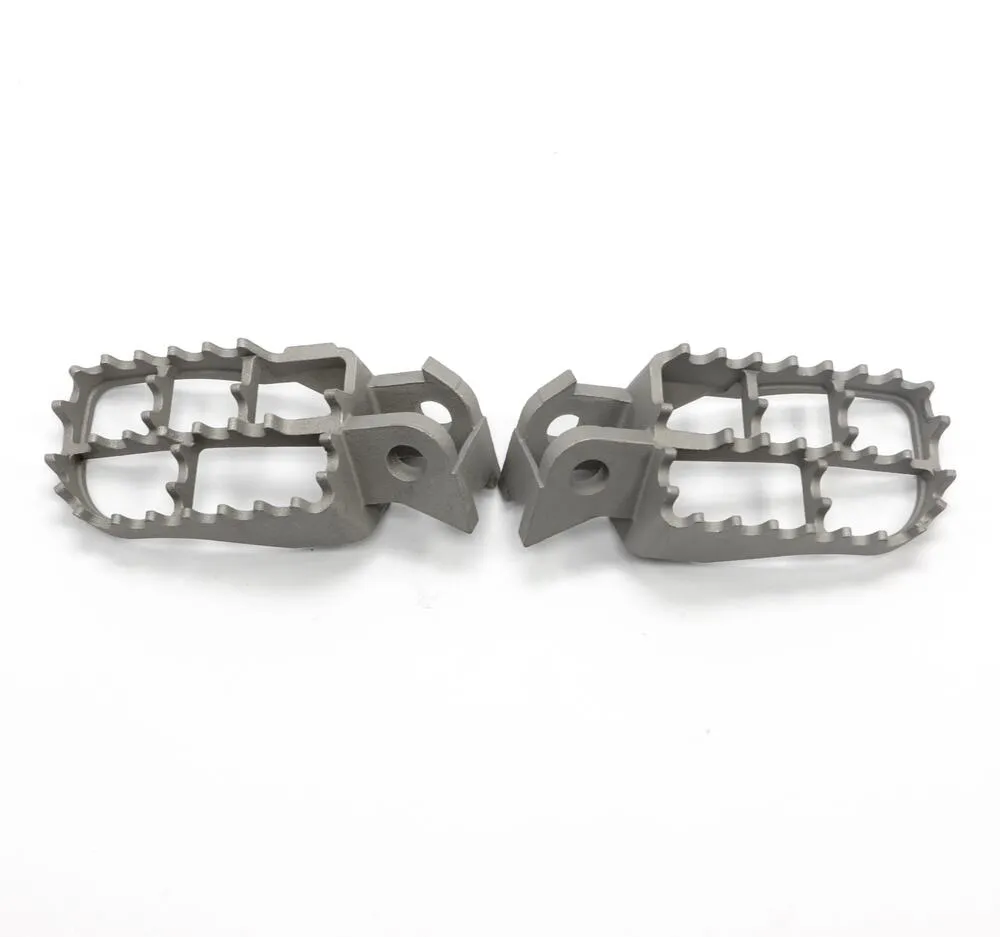

[00008005] FOOTBOARDS - FANTIC | 1 | Em Stock (1 un) | 49.40 € |
|
| 33 | 00010005 |
|
[00010005] SPRING FOOTBOARD 50 + 4T - FANTIC Catálogo | 1 | Sob Consulta | 3.20 € |
|
| 34 | 00341005 |
|
[00341005] WASHER 10 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 35 | 00322005 |
|
[00322005] PIN-FAST FOOTBOARDS - FANTIC Catálogo | 1 | Sob Consulta | 3.00 € |
|
| 36 | 01186005 |
|
[01186005] RIGHT RADIATOR - FANTIC Catálogo | 1 | Sob Consulta | 164.00 € |
|
| 37 | 00051005 |
|
[00051005] SCREW-SOCKET CONVEX HEAD 8X20 - FANTIC Catálogo | 1 | Sob Consulta | 0.40 € |
|
| 38 | 00052005 | [00052005] SCREW-SOCKET CONVEX HEAD 8X30 - FANTIC | 1 | Sob Consulta | 0.40 € |
|
|
| 39 | 00583005 |
|
[00583005] NUT-LOCK 8 LOW - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 40 | 02063005 |
|
[02063005] CAP RADIATOR RIGHT - FANTIC Catálogo | 1 | Sob Consulta | 17.00 € |
|
| 41 | 01891005 |
|
[01891005] CLIP 12X15 - FANTIC Catálogo | 1 | Sob Consulta | 0.60 € |
|
| 42 | 00070005 |
|
[00070005] CLIP M6 - FANTIC Catálogo | 1 | Sob Consulta | 1.20 € |
|
| 43 | 01561001 |
|
[01561001] PLATE CONN.MOTOR 125 LC LEFT BLACK - FANTIC Catálogo | 1 | Sob Consulta | 11.40 € |
|
| 44 | 00081005 |
|
[00081005] BEARING PLATE COMP. - FANTIC Catálogo | 1 | Sob Consulta | 19.80 € |
|
| 44 | 00247005 |
|
[00247005] PLATE BEARING CASA E/M - FANTIC Catálogo | 1 | Sob Consulta | 4.80 € |
|
| 45 | 00044005 | [00044005] SCREW-SOCKET HEAD 6X16 - FANTIC | 1 | Sob Consulta | 0.20 € |
|
|
| 46 | 01320001 |
|
[01320001] SUPPORT RADIATOR LEFT BLACK - FANTIC Catálogo | 1 | Sob Consulta | 10.80 € |
|
| 47 | 00058005 |
|
[00058005] WASHER 6X18 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 48 | 00255005 |
|
[00255005] SCREW-SOCKET CONVEX HEAD 6X25 - FANTIC Catálogo | 1 | Sob Consulta | 0.20 € |
|
| 49 | 01318005 |
|
[01318005] SUPPORT CONVEYOR LEFT - FANTIC Catálogo | 1 | Sob Consulta | 12.20 € |
|
| 50 | 01317005 |
|
[01317005] SUPPORT CONVEYOR RIGHT - FANTIC Catálogo | 1 | Sob Consulta | 12.20 € |
|
| 51 | 01187005 |
|
[01187005] LEFT RADIATOR - FANTIC Catálogo | 1 | Sob Consulta | 153.80 € |
|
| 52 | 01485005 |
|
[01485005] SCREW-HEXAGONAL HEAD 8X120 - FANTIC Catálogo | 1 | Sob Consulta | 1.40 € |
|
| 53 | 01484005 |
|
[01484005] SCREW-HEXAGONAL HEAD 8X90 - FANTIC Catálogo | 1 | Sob Consulta | 0.80 € |
|
| 54 | 00067005 |
|
[00067005] NUT-LOCK 8 - FANTIC | 1 | Sob Consulta | 0.20 € |
|
