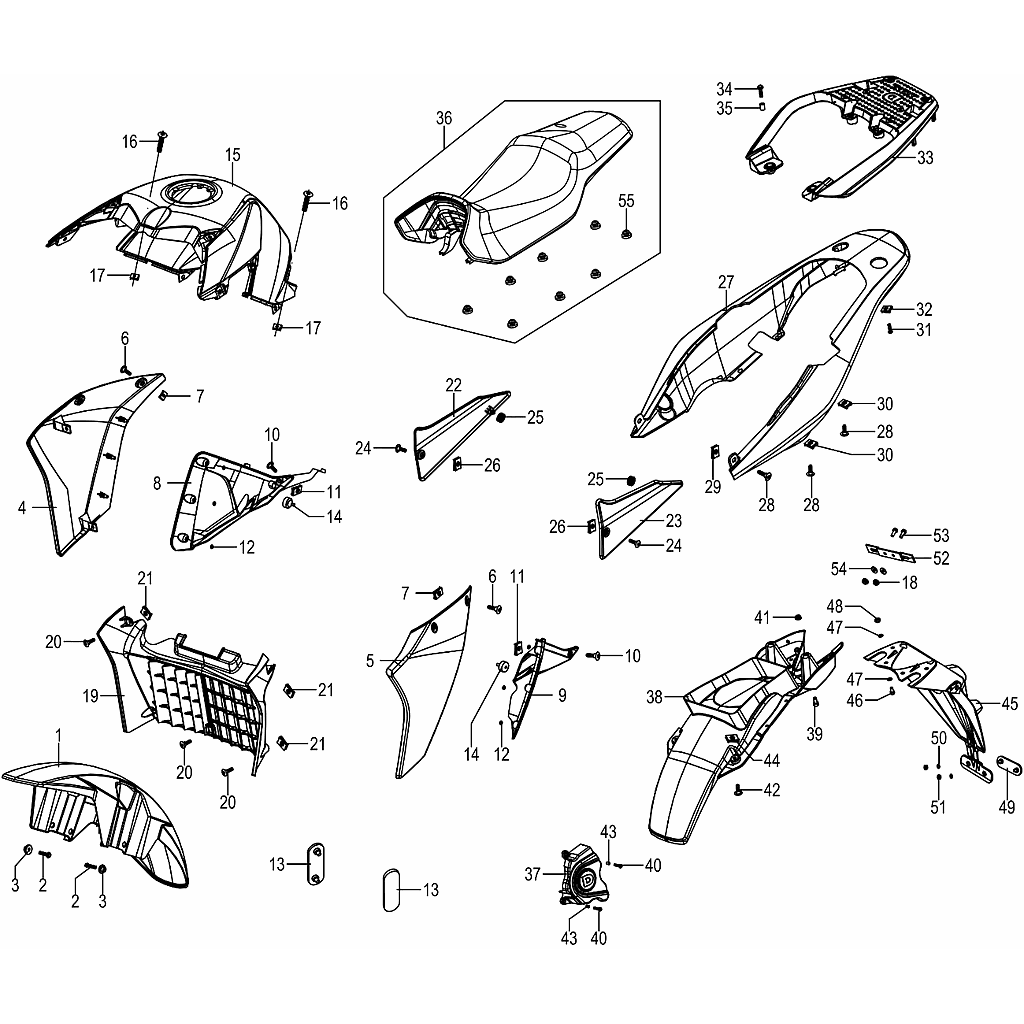

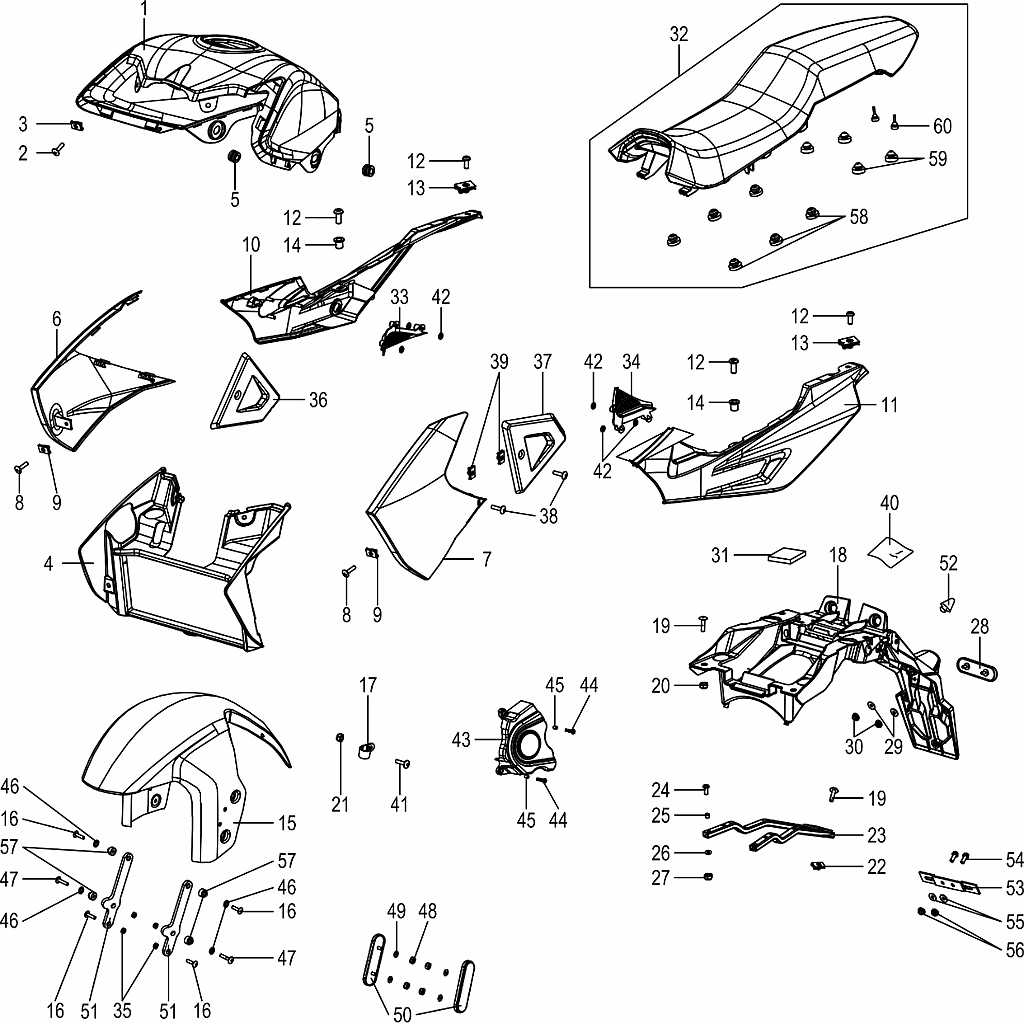

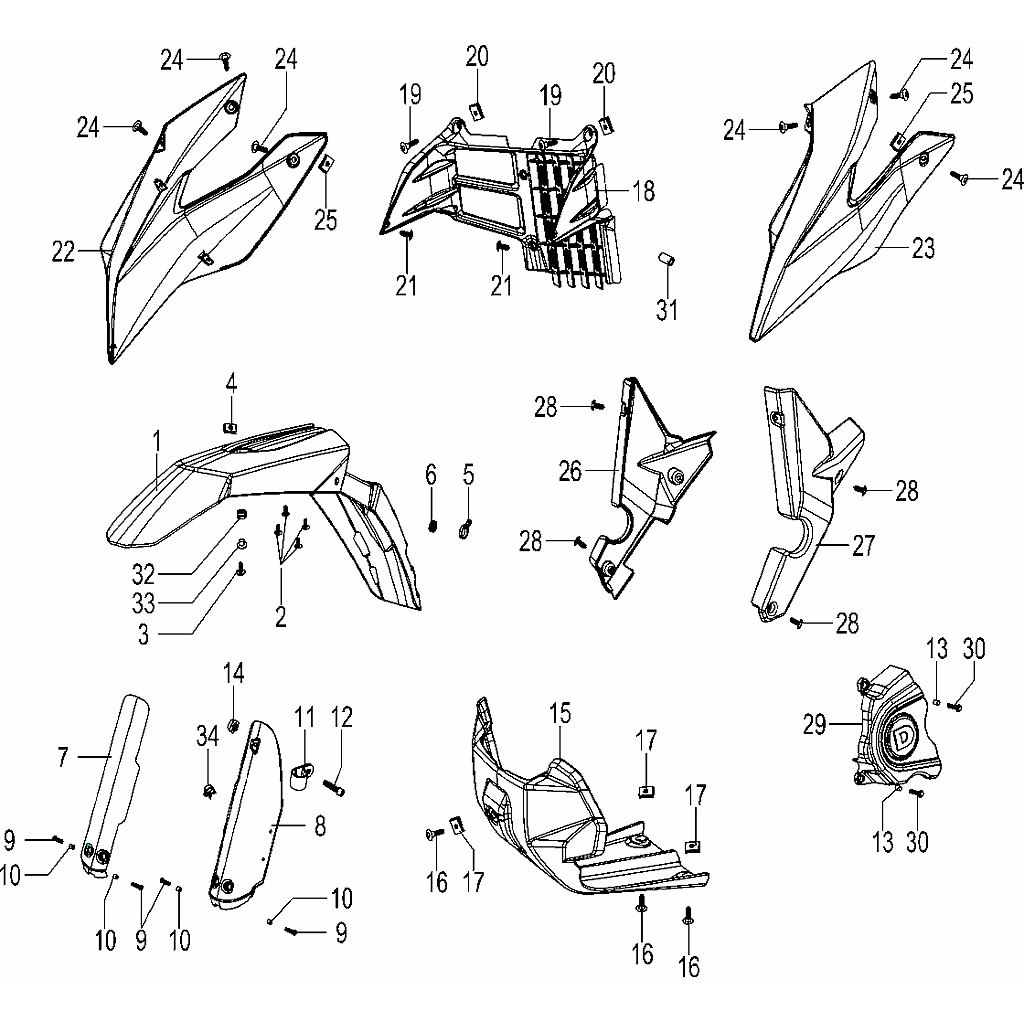

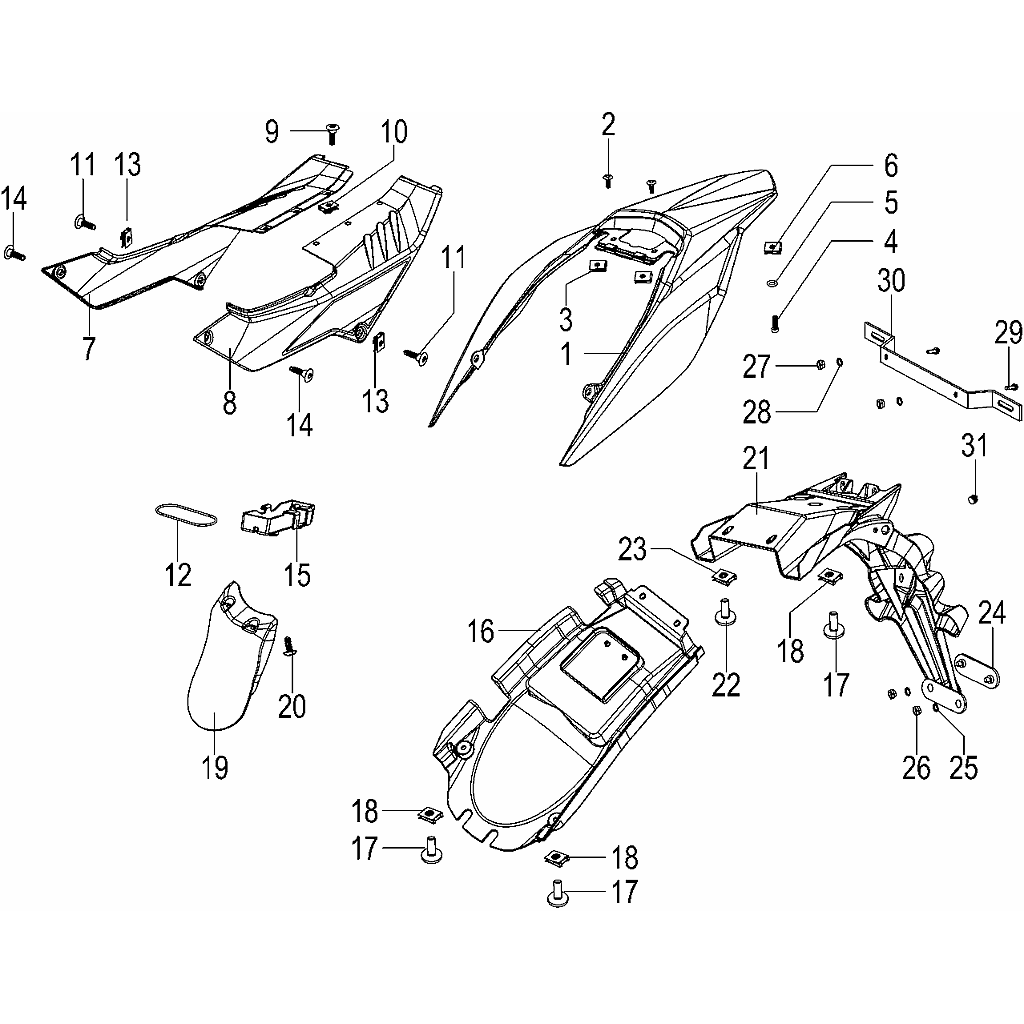

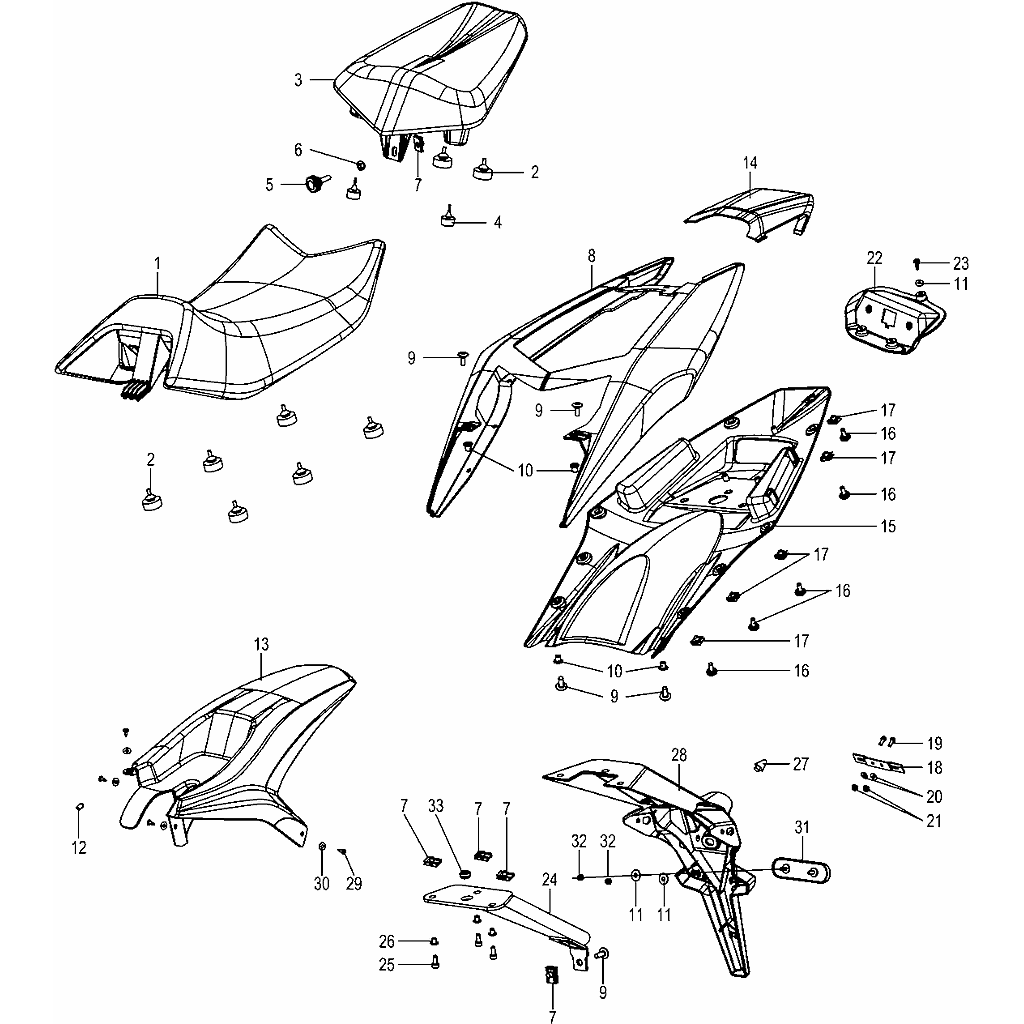

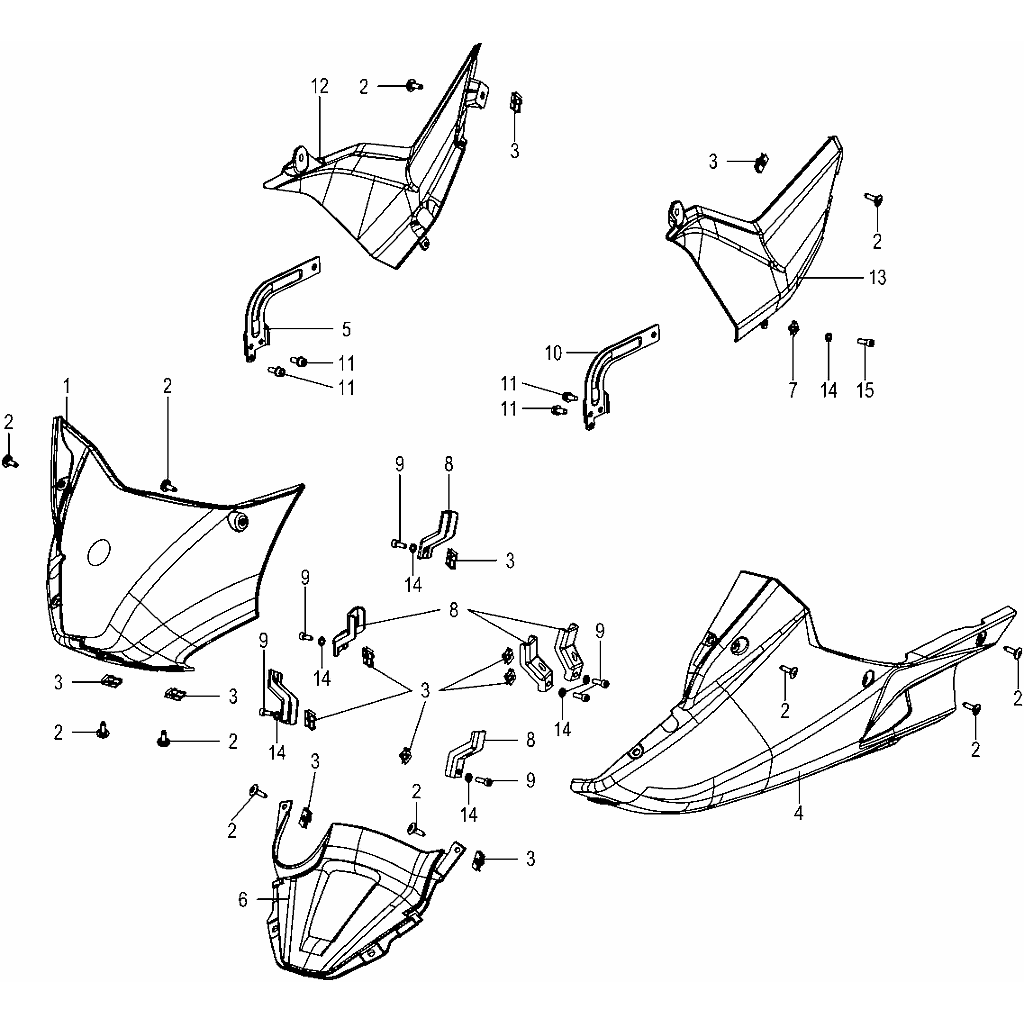

F12- Coberturas Malaguti Dune X 125

Microfichas / Malaguti / Peças de Montagem / Dune 125 X Black Edition

Alternar rapidamente entre desenhos deste veículo (18):

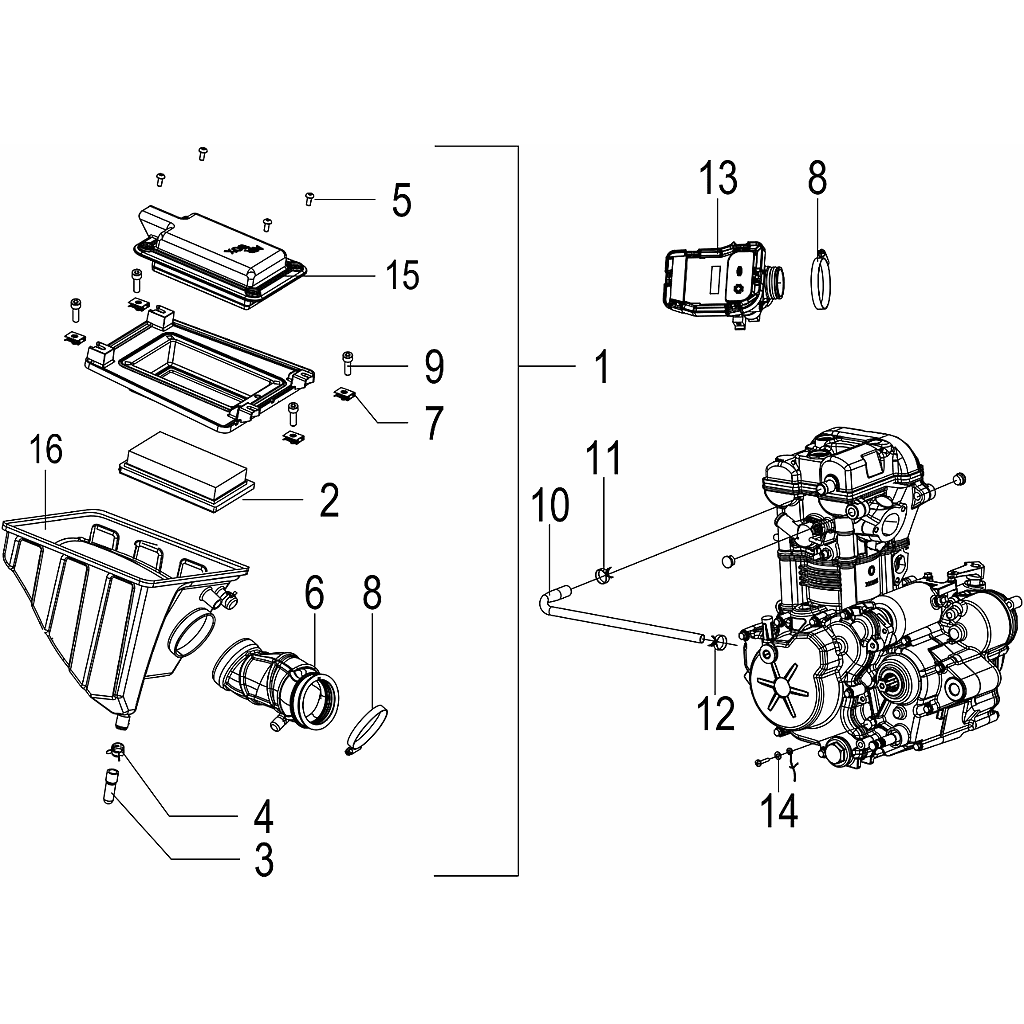

F01- Filtro de ar Malaguti Dune X 125

F02- Válvula de ventilação do depósito Malaguti Dune X 125

F03- Sistema Elétrico Malaguti Dune X 125

F04- Chassi Malaguti Dune X 125

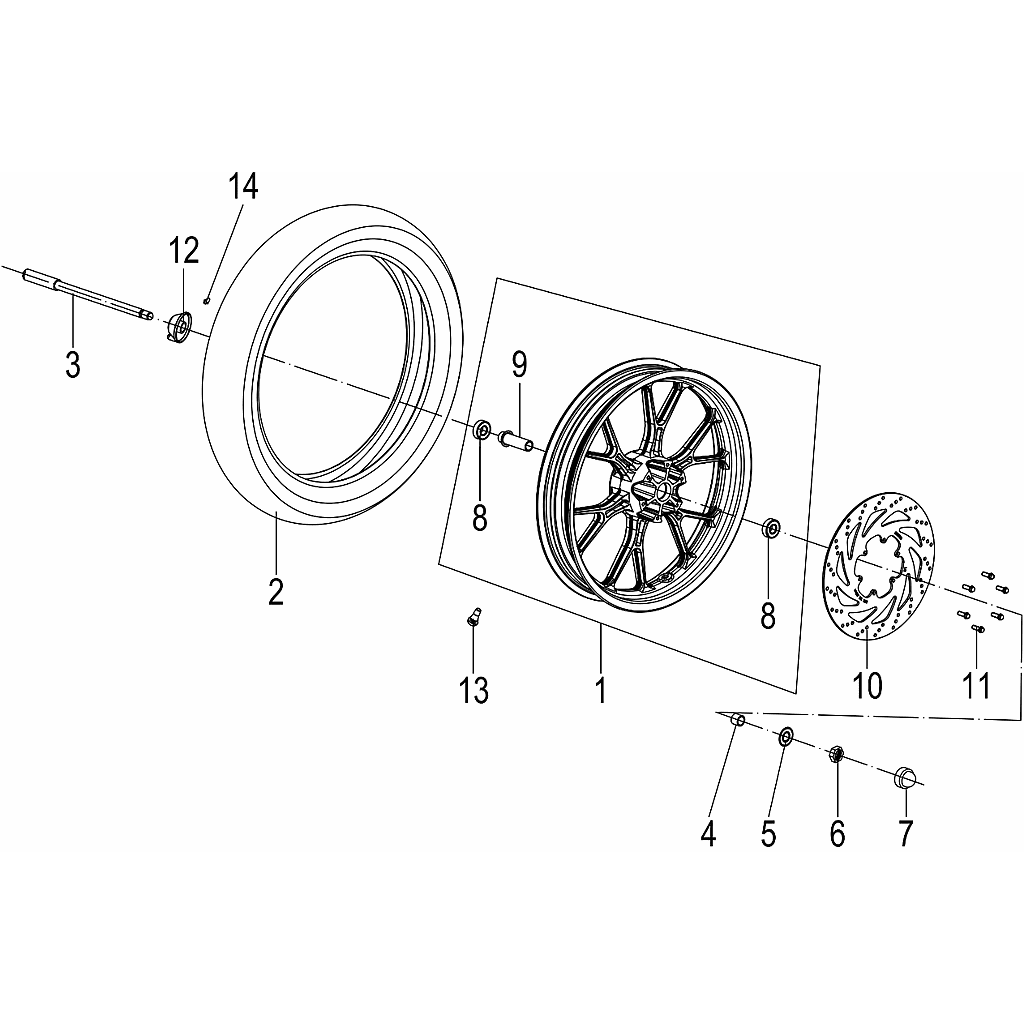

F05- Roda da frente Malaguti Dune X 125

F06- Sistema de travagem Malaguti Dune X 125

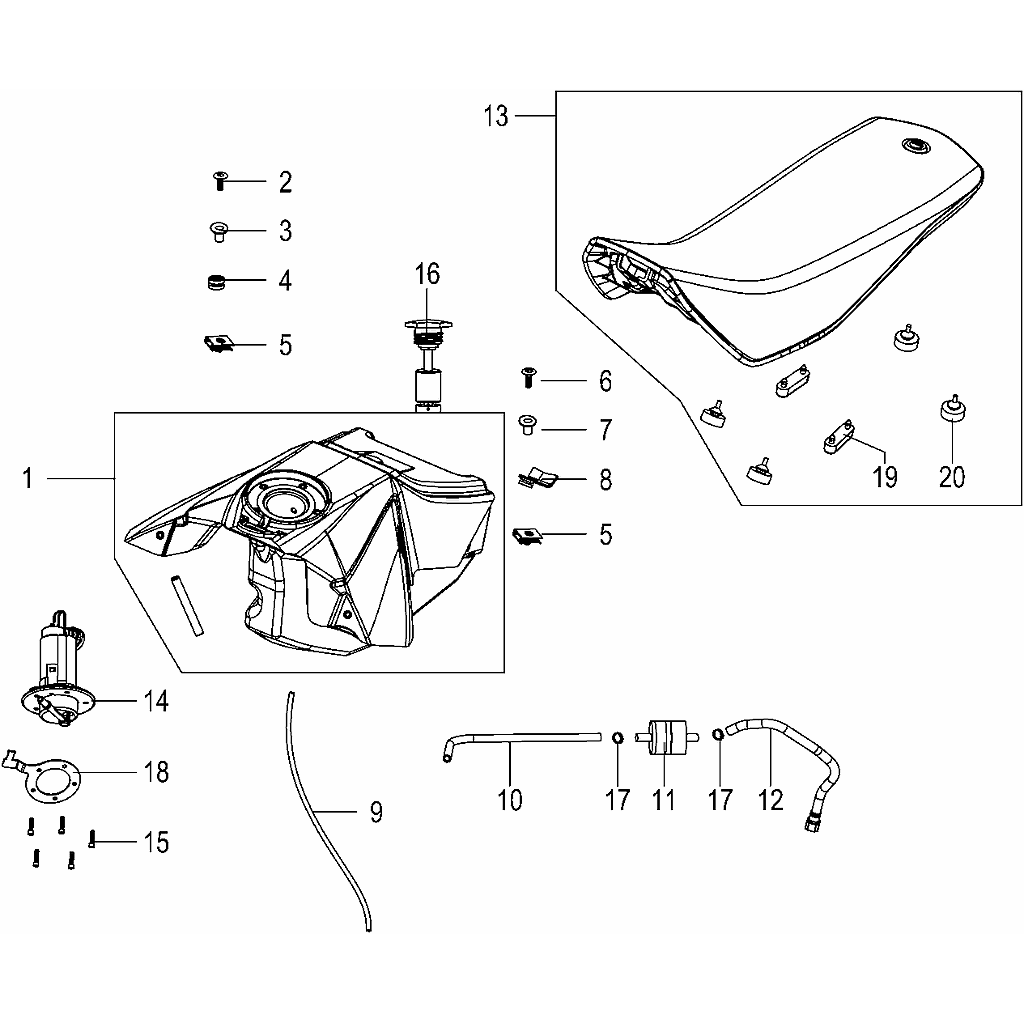

F07- Depósito Malaguti Dune X 125

F08- Guiador Malaguti Dune X 125

F09- Sistema de luzes Malaguti Dune X 125

F10- Kit de bloqueio Malaguti Dune X 125

F11- Silenciador Malaguti Dune X 125

F12- Coberturas Malaguti Dune X 125

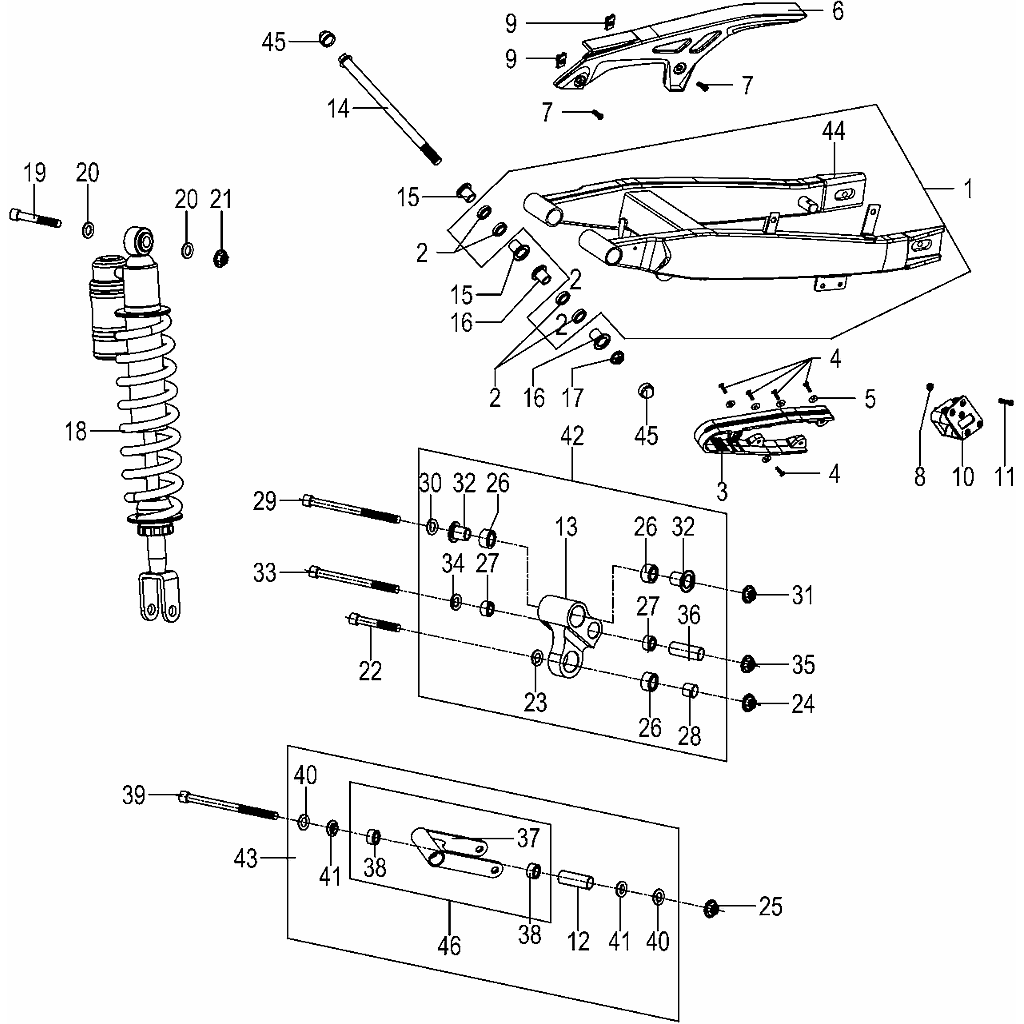

F13- Braço Oscilante Malaguti Dune X 125

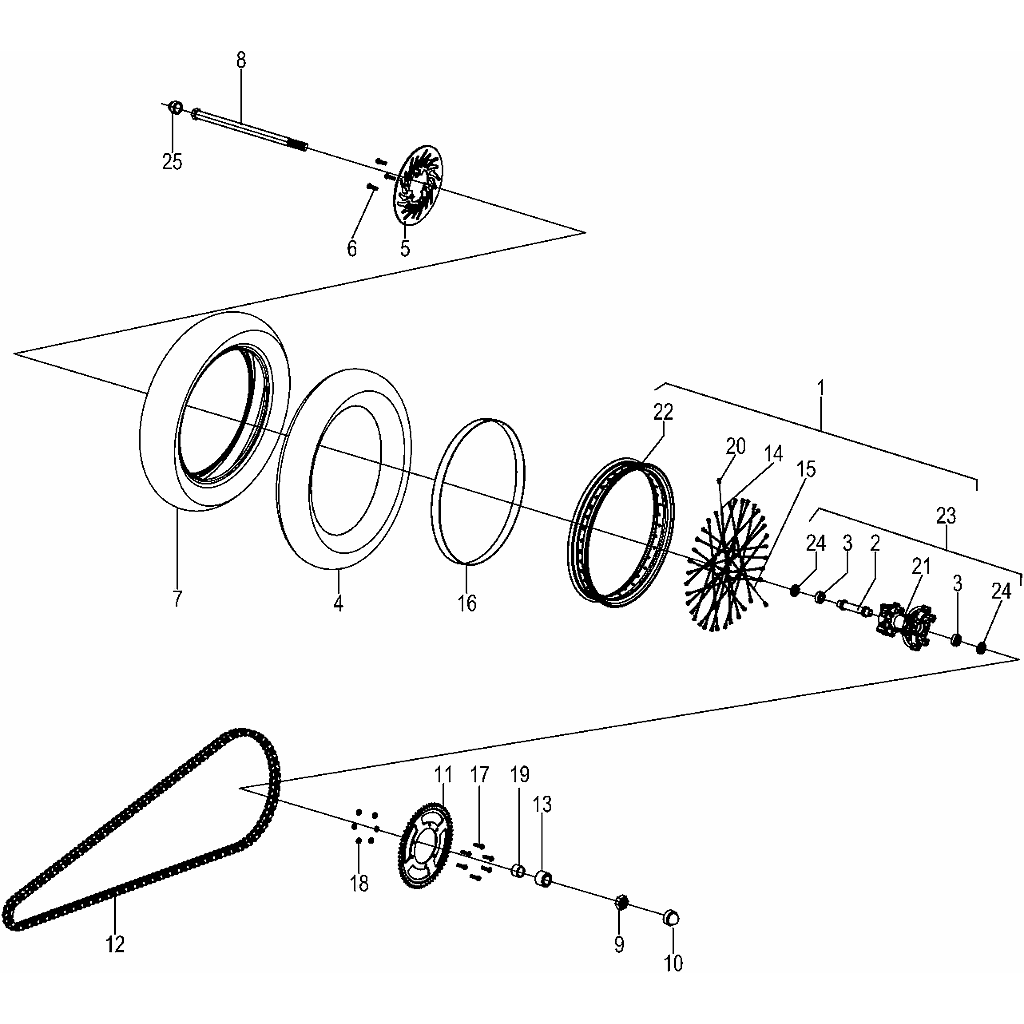

F14- Roda traseira Malaguti Dune X 125

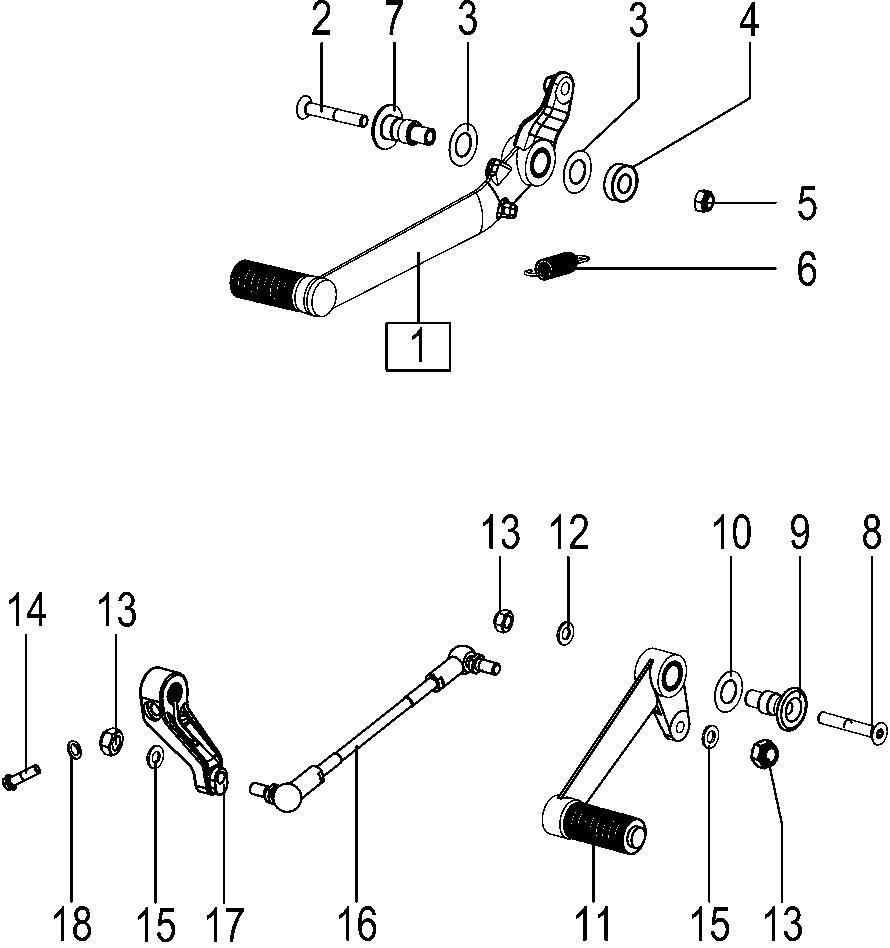

F15- Pedal de freio Malaguti Dune X 125

F16- Amortecedor frontal Malaguti Dune X 125

F17- Autocolante Malaguti Dune X 125

F18- Sinais de perigo Malaguti Dune X 125

Peças do Desenho (77 itens)

Nº	Ref. OEM	Descrição da Peça	Qtd	Disponibilidade	Preço
1	65103LMB0000	[65103LMB0000] Front wheel arch panel	1	Sob Consulta	5.00 €
1	86351600069	[86351600069] Fuel tank cover panels black	1	Sob Consulta	5.00 €
4	00H06303771	[00H06303771] Rubber cushion	1	Sob Consulta	1.56 €
4	863510	[863510] Radiator cowling	1	Sob Consulta	23.27 €
5	00H00501761	[00H00501761] Rubber washer	1	Sob Consulta	1.17 €
6	013763H	[013763H] Washer M4	1	Sob Consulta	0.73 €
6	86351100069	[86351100069] Front right cover black	1	Sob Consulta	44.63 €
7	86351200069	[86351200069] Front left cover black	1	Sob Consulta	44.63 €
8	AP8152339	[AP8152339] Screw M5x9	1	Sob Consulta	1.04 €
9	248419H	[248419H] Clamp M5x10,6	1	Sob Consulta	0.65 €
9	624995	[624995] Screw M6x16	1	Sob Consulta	1.04 €
10	86351400069	[86351400069] Right side body panel black	1	Sob Consulta	59.67 €
11	679455	[679455] Screw M6x25	1	Sob Consulta	1.04 €
11	86351300069	[86351300069] Left side body panel black	1	Sob Consulta	59.67 €
12	679903	[679903] Licence plate bracket	1	Sob Consulta	6.37 €
14	86321600W69	[86321600W69] Carenagem lateral direita frontal preto - Malaguti (Dune 125)	1	Sob Consulta	42.77 €
15	86321700W69	[86321700W69] Carenagem lateral esquerda frontal preto - Malaguti (Dune 125)	1	Em Stock (1 un)	52.76 €
15	86295400069	[86295400069] Front mudguard	1	Sob Consulta	64.96 €
16	86321900W69	[86321900W69] Fuel tank cover panels black	1	Sob Consulta	110.37 €
16	862210	[862210] Screw M6x20	1	Sob Consulta	1.04 €
17	863221	[863221] Front left cover inside black	1	Sob Consulta	10.27 €
17	864454	[864454] Supporting clamp	1	Sob Consulta	1.43 €
18	863222	[863222] Front right cover inside black	1	Sob Consulta	10.27 €
18	863515	[863515] Rear mudguard	1	Sob Consulta	42.25 €
19	00H01501701	[00H01501701] Screw M6x16	1	Sob Consulta	1.04 €
19	863223	[863223] Rear wheel arch panel	1	Sob Consulta	24.57 €
20	863224	[863224] Licence plate bracket	1	Sob Consulta	18.85 €
20	B017880010006000C	[B017880010006000C] Porca M6	1	Sob Consulta	0.91 €
21	86322600WN1	[86322600WN1] Luggage carrier	1	Sob Consulta	99.97 €
21	B061720205000060B	[B061720205000060B] Nut M5	1	Sob Consulta	0.65 €
22	254485	[254485] Porca com rosca M6	1	Sob Consulta	0.65 €
22	863227	[863227] Radiator cowling	1	Sob Consulta	38.35 €
23	86322800W69MT-2	[86322800W69MT-2] Handrail black	1	Sob Consulta	76.57 €
23	86331701WNB	[86331701WNB] Bracket rear fender	1	Sob Consulta	18.85 €
24	B057890006002570B	[B057890006002570B] Screw M6x25	1	Sob Consulta	0.65 €
25	00N01000821	[00N01000821] Bushing	1	Sob Consulta	1.17 €
25	8632640001	[8632640001] Seat	1	Sob Consulta	127.27 €
26	864051	[864051] Right side body panel	1	Sob Consulta	16.77 €
27	864052	[864052] Left side body panel	1	Sob Consulta	16.77 €
28	00G04403752	[00G04403752] Rear reflector red	1	Sob Consulta	6.24 €
28	864131	[864131] Bushing 13x8,5x17,5	1	Sob Consulta	1.56 €
29	864958	[864958] Front mudguard	1	Sob Consulta	23.27 €
30	AP8152302	[AP8152302] Screw M5x16	1	Sob Consulta	0.91 €
31	680077	[680077] Rubber washer	1	Sob Consulta	0.65 €
32	B000700005001670B	[B000700005001670B] Screw M5x16	1	Sob Consulta	0.65 €
32	8615030003	[8615030003] Seat	1	Sob Consulta	135.59 €
33	B0007002060025700	[B0007002060025700] Screw M6x25	1	Sob Consulta	1.04 €
33	864256	[864256] Mesh insert front right	1	Sob Consulta	10.27 €
34	864257	[864257] Mesh insert front left	1	Sob Consulta	10.27 €
36	864353	[864353] Cover right	1	Sob Consulta	16.25 €
37	864354	[864354] Cover left	1	Sob Consulta	16.25 €
38	B057890008003070B	[B057890008003070B] Screw M8x30	1	Sob Consulta	1.04 €
39	00G04401462H	[00G04401462H] Clamp M5	1	Sob Consulta	0.73 €
40	679700	[679700] Information sticker	1	Sob Consulta	3.77 €
41	B000700205001270H	[B000700205001270H] Screw M5x12	1	Sob Consulta	0.65 €
42	B061830106000060B	[B061830106000060B] Nut M6	1	Sob Consulta	0.65 €
42	ZP00G06300671	[ZP00G06300671] Supporting clamp	1	Sob Consulta	0.65 €
43	863250	[863250] Drive chain sprocket cover	1	Sob Consulta	13.26 €
43	ZP00D01010821	[ZP00D01010821] Casquilho de Borracha - Malaguti 125	1	Sob Consulta	1.17 €
44	B057890005001470B	[B057890005001470B] Screw M5x14	1	Sob Consulta	0.65 €
45	00H01600911	[00H01600911] Bushing 5,4x7,2x6	1	Sob Consulta	1.56 €
46	664045	[664045] Reflector orange	1	Sob Consulta	5.72 €
47	862211	[862211] Screw M6x30	1	Sob Consulta	1.04 €
48	B061720204000060B	[B061720204000060B] Nut M4	1	Sob Consulta	0.65 €
49	B0009600050000K0B	[B0009600050000K0B] Anilha M5	1	Sob Consulta	0.65 €
50	679464	[679464] Reflector orange	1	Sob Consulta	5.72 €
51	867258	[867258] Bracket front fender	1	Sob Consulta	5.07 €
52	679386	[679386] Rubber washer	1	Sob Consulta	0.65 €
53	67938501WNA	[67938501WNA] Licence plate bracket	1	Sob Consulta	6.37 €
54	B057890006001670B	[B057890006001670B] Screw M6x16	1	Sob Consulta	0.65 €
55	B0009700060000K0B	[B0009700060000K0B] Anilha M6	1	Sob Consulta	0.98 €
56	B061720206000060B	[B061720206000060B] Porca M6	1	Em Stock (7 un)	0.73 €
57	65502LMBAE00	[65502LMBAE00] Front wheel arch panel grey	1	Sob Consulta	5.00 €
57	865399H	[865399H] Socket 5.2x7x6	1	Sob Consulta	5.00 €
58	862000	[862000] Rubber washer	1	Sob Consulta	1.17 €
59	00H06101101	[00H06101101] Rubber washer	1	Sob Consulta	1.17 €
60	621979-9	[621979-9] Rubber washer	1	Sob Consulta	0.65 €
